Installing a new Proof of Delivery App Instance

A valid license is required for the installation of Proof of Delivery. Ensure that it is correctly linked in the B1 ProSuite Software Platform before the installation is started.

Steps

Remarks/Comments

1

Start the B1ProSuite Software Platform application if it has not yet started and login if needed.

2

Navigate to Packages > Applications.

3

Click (in lower right corner) on “New”.

4

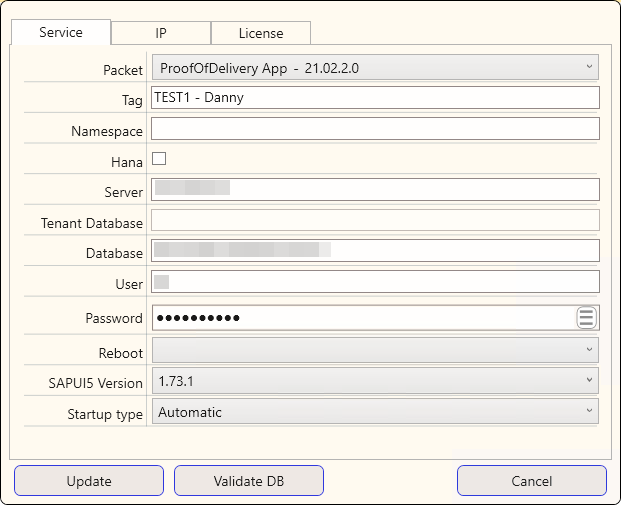

In Service tab, select packet ProofOfDelivery App - xx.xx.x.x.

5

Enter a desired "Tag" to categorize the different applications (for example TEST or PRODUCTION).

6

"Namespace" can be left empty. This will not be used.

7

Leave the "Hana" field unchecked since Proof of Delivery App only support SQL Server database platforms.

8

Enter the database server address behind "Server".

9

Specify the name of the Proof of Delivery Application database to which the service should be linked in "Database" field.

If the specified database does not exist, it will be created during setup.

Do not enter the SAP Business One database name here! A separate and dedicated database must be created for the Proof of Delivery Application.

10

Enter the Database server login data in "User" and "Password" fields.

11

If desired, select a time when the Application should be restarted automatically. If this is set up, make sure that this is outside of business hours.

12

Select a "SAPUI5 Version" when this specific version is to be used. If left blank, the highest available version is used.

Proof of Delivery requires the use of a specific range of SAPUI5 framework. Use version from 1.73.x range.

13

Select the “Startup type” to indicate whether the application should be started automatically when the B1ProSuite Software Platform service is started.

14

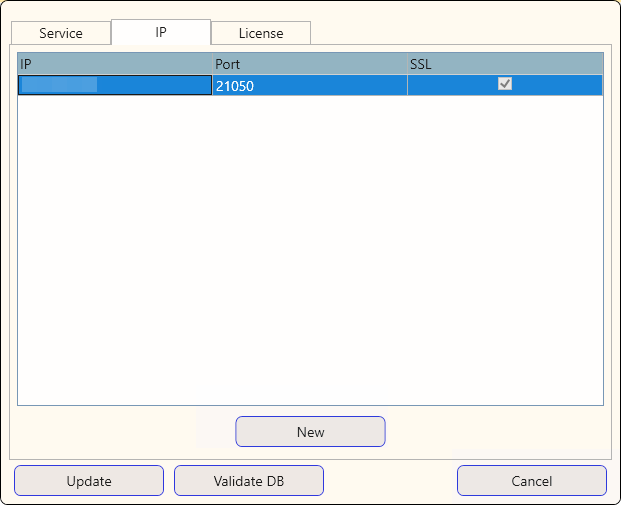

In IP tab, select which IP port this "service" should use.

In order to get Estimated Time of Arrival of a Route working, an SSL connection is required. Make sure to create firewall rules to accept access to this port (and webserver port).

15

In License tab. Assign an available license.

Check the B1ProSuite Software Platform installation manual for instructions on obtaining (temporary) licenses.

16

Click “Add” to start installation process.
